Automatic Loading Machine

—— Product Description ——

The machine is a fully automatic loading robot for glass.

Model: WLSP2000/WLSP2500/WLXP2000/WLXP2500

Production : 30-40 days

—— Selection Parameters ——

    Main technical parameters

    1. Maximum processing size: 2500*3500mm

    2. Thickness of top glass: 4~12mm

    3. Suction arm speed: 0~12 m/min

    4. The maximum extension size of the suction arm: 800 mm

    5. Working angle of swing arm: 84~100°

    6. Air source: 0.7-0.8Mpa

    7. Total power 10KW

    8. Dimensions (length*width*height): 3000*2800*2900mm


    Main performance characteristics

    1. Instead of manual loading, reducing labor intensity

    2. Reduced the risk factor

    3. Servo motor and driver control, accurate film picking and safe placement.


    Main components:

    Number

    Product name

    Brand name

    Brand location

    1

    Control part PLC

    Panasonic

    Japan

    2

    servo motor

    Xinjie

    Taiwan

    3

    Color touch screen

    Winview

    Japan

    4

    Photoelectric switch

    Autonics

    Korea

    5

    Frequency converter

    Taian

    Taiwan

    6

    Vacuum generator

    SMC

    Japan

    7

    The electromagnetic valve

    AirTAC

    Taiwan

    8

    Low-voltage electrical appliances

    Schneider

    France

    9

    cylinder

    AirTAC

    Taiwan

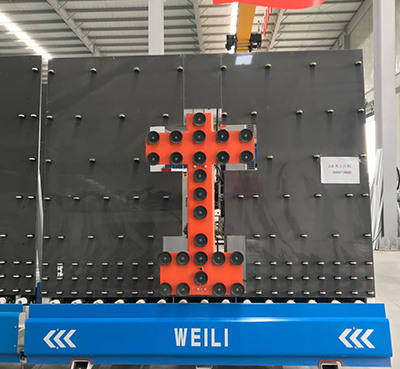

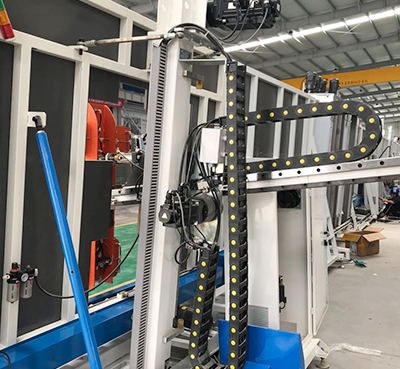

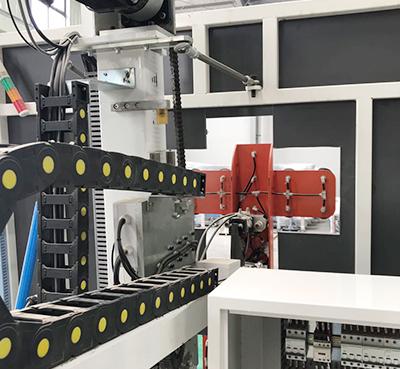

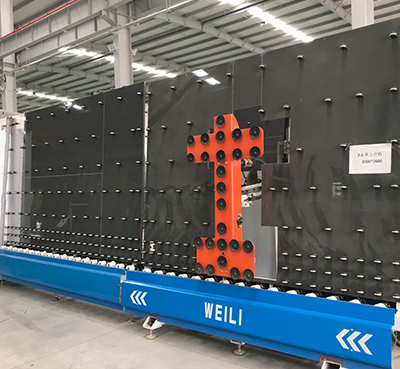

—— Detail Image ——

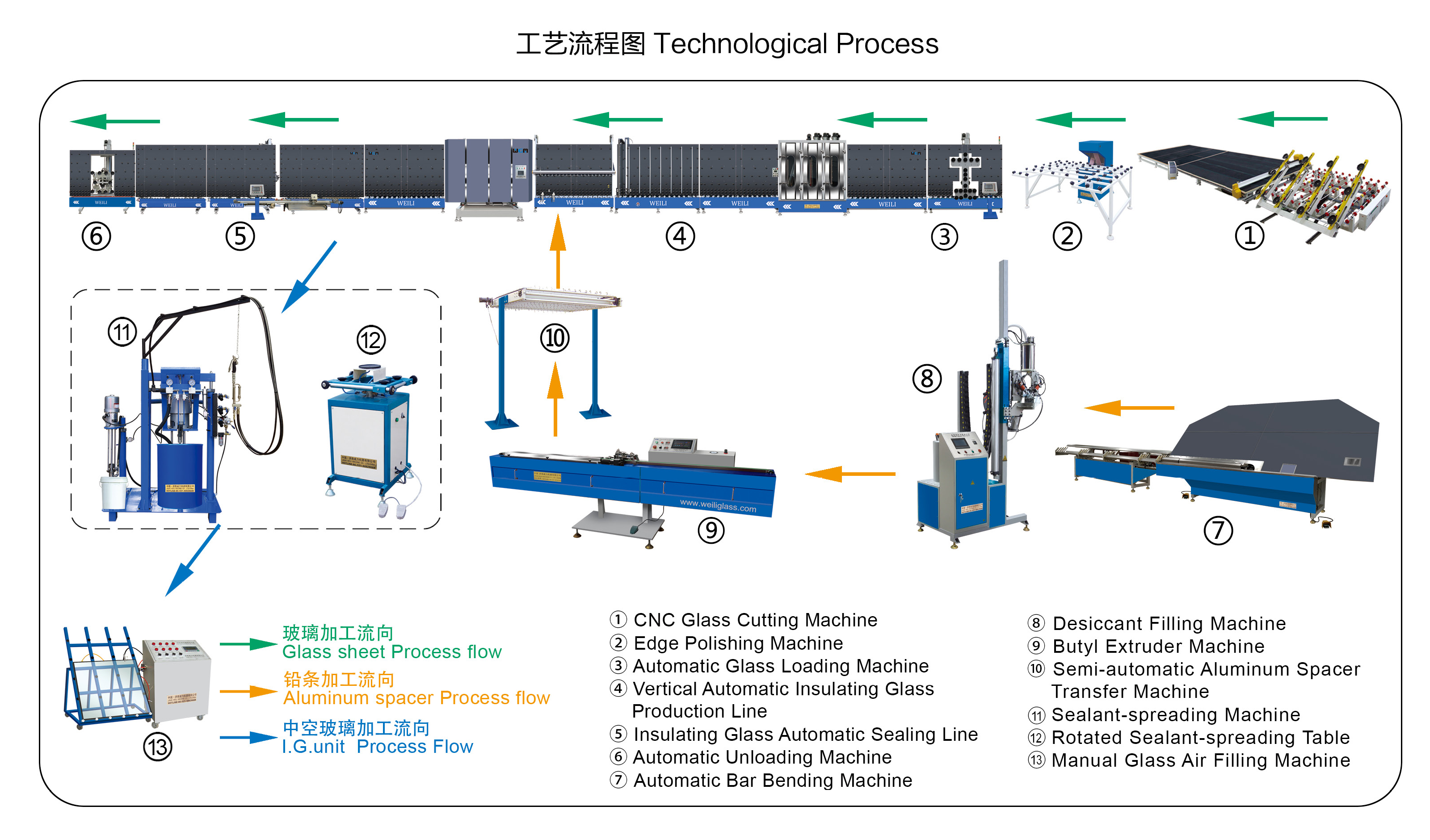

—— Flow Chart ——
