Vertical Automaitc Inside Assembly Production Line

Product Description Selection Parameters Detail Image Flow Chart
—— Product Description ——

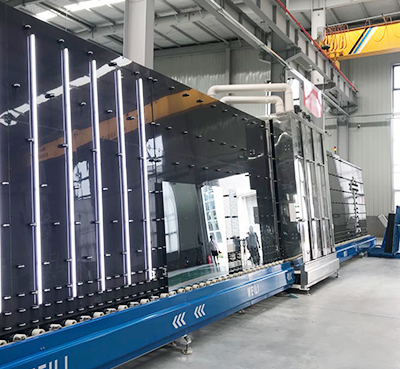

The production line consists of a high-performance stainless steel cleaning machine, manual spacer bar loading, automatic inner glass assembly device, automatic flat pressing device, and automatic glass discharging device.

It can be upgraded and expanded according to user’s requirements

—— Selection Parameters ——
  • Model 1：

    Model：LBW2200PN

    Technical parameter：
    Power supply：380V 50Hz
    Total power ：38Kw
    Washing glass speed ：3~10m/min
    Transmission glass speed：45m/min
    Minimum glass size：300mm×400mm
    Insulating glass thickness：15~60mm
    Washing glass thickness：3~12mm
    flow volume：800L/min
    Total weight：7500kg
    Order this model
  • Model 2：

    Model：LBW2000PN

    Technical parameter：
    Power supply：380V 50Hz
    Total power ：38Kw
    Washing glass speed ：3~10m/min
    Transmission glass speed：45m/min
    Minimum glass size：300mm×400mm
    Insulating glass thickness：15~60mm
    Washing glass thickness：3~12mm
    flow volume：800L/min
    Total weight：7500kg
    Order this model
  • Model 3：

    Model：LBW2500PN

    Technical parameter：
    Power supply：380V 50Hz
    Total power ：38Kw
    Washing glass speed ：3~10m/min
    Transmission glass speed：45m/min
    Minimum glass size：300mm×400mm
    Insulating glass thickness：15~60mm
    Washing glass thickness：3~12mm
    Flow volume：800L/min
    Total weight：7500kg
    Order this model
—— Detail Image ——
—— Flow Chart ——
